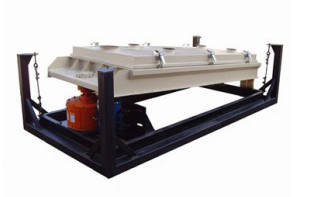

PXSJ Square Swing Screen

Introduction

Square Swing Screen is a kind of device famous for its large capacity ,high efficiency and high precision. It is universally used in chemical and metallurgical, mining, feed, food and other industries., especially for heavy alkali, salt, resin, fertilizer, urea granule size, feed, reduced iron powder, zirconium oxide, ceramic, barite, etc.

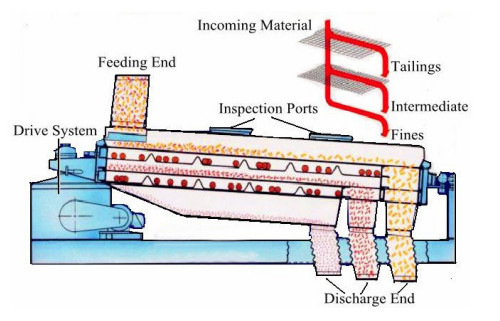

  Working principle

The unique gyratory motion imparts a combination of actions to the material as it passes along the screen surface. It begins with a horizontal circular motion at the feed end, gradually diminishing along the length of the machine to an elliptical path, and finally to an approximate straight-line motion at the discharge end. There is no vertical component to this motion thus keeping the material in constant contact with the screen surface.

Applied fields

It is widely used in chemical and metallurgical, mining, feed, food and other industries. Especially for heavy alkali, salt, resin, fertilizer, urea granule size, feed, reduced iron powder, zirconium oxide, ceramic, barite, etc.

Feature

1. Good sealing, balance weight can provide slight vibration and low noise, environmental protection.

2. Combination of circle, elliptic, linear motion, high screening effect .Suitable for various material screening.

3. Equipped with automatic tension and automatic cleaning sieve net installation system which can make the screen mesh long service life and high efficiency , change the screen mesh conveniently.

Reinforced base ensure balance operation of the equipment.

5. Improve wire rope hanging structure, to avoid steel wire wear

6. Two or three decks screen frame design can be chosen.

7. Used for powder or granule feed screening and grade, can also be used for voidance of raw materials in feed factory.

Parameters
